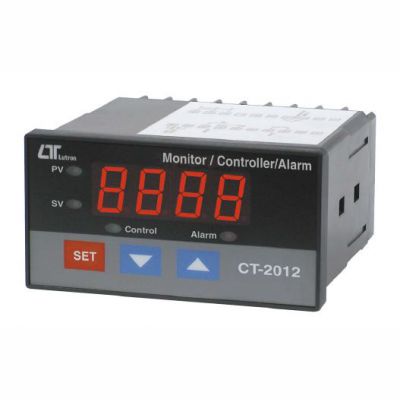

Lutron CT-2012

Process Indicator with built-in Controller and Alarm
Lutron CT-2012

CT-2012
LUTRON 4 Digit Panel Meter Controller Alarm Indicator
CT-2012 cooperates LUTRON's 4 to 20 mA transmitters ( or any other transmitters if it builds 4 to 20 mA output signal ), whole system will become the high-performance Controller/Alarm/Indicator for the following measuring functions: Humidity, Light, pH, Dissolved Oxygen, Conductivity, Vibration, Pressure Sound, Temperature, RPM, Hz, Load cell ( Weight, Force ), Potential ( Angle, Level ). ACV, ACA, DCV, DCA, WATT

The 4 to 20 mA input signal, the user can preset the desired display value between -1999 to 9999 ( decimal point can select to DP1, DP2, DP3 ). Until set the display value, all the data will be saved into the memory circuit permanently.
* DC 24V power supply output.
* RS232/USB computer interface
* Power : 90 ACV - 260 ACV, 50/60 Hz.
Control output: 2 points ( COM, NO )
* Alarm output: 2 points ( COM, NO ).
