G438 Signal Conditioner

Configurable, Potentiometer Input
Action Instruments Australia

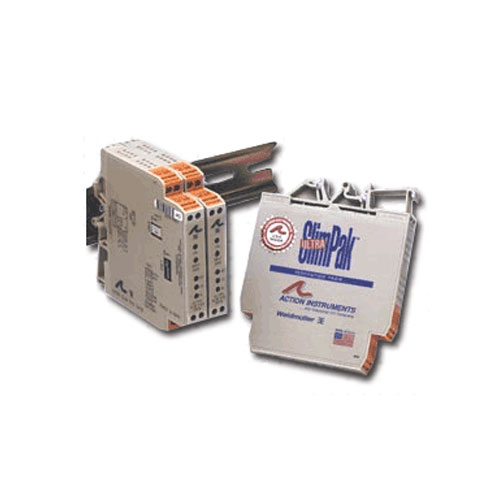

The G438 is a DIN rail mount, potentiometer input signal conditioner
with 1800VDC isolation between DC power and the input/output circuitry.

The input provides a constant voltage and is designed to accept any three-wire
potentiometer from 100W to 100KW.

The field configurable output is switch selectable providing either 0-5V, 0-10V, 0-1mA, 0-20mA or 4-20mA DC signal.

Wide ranging, precision zero and span pots, used in conjunction with DIP switches, allow 80% adjustability of offset and gain to transmit a full scale output from any 20% portion of the potentiometer input.

Stocklist
Part Number Description Related Product
G108-0001

EURO ACTION DC input 24VDC supply, alarm limit-trip

Enquire Now
G408-0001

ACTION DC Input 24VDC supply, signal isolator

Enquire Now
G438-0001

ACTION Potentiometer Input 24VDC supply, signal isolator

Enquire Now
G448-0002

ACTION Strain Gauge 24VDC supply, isolated transmitter

Enquire Now
