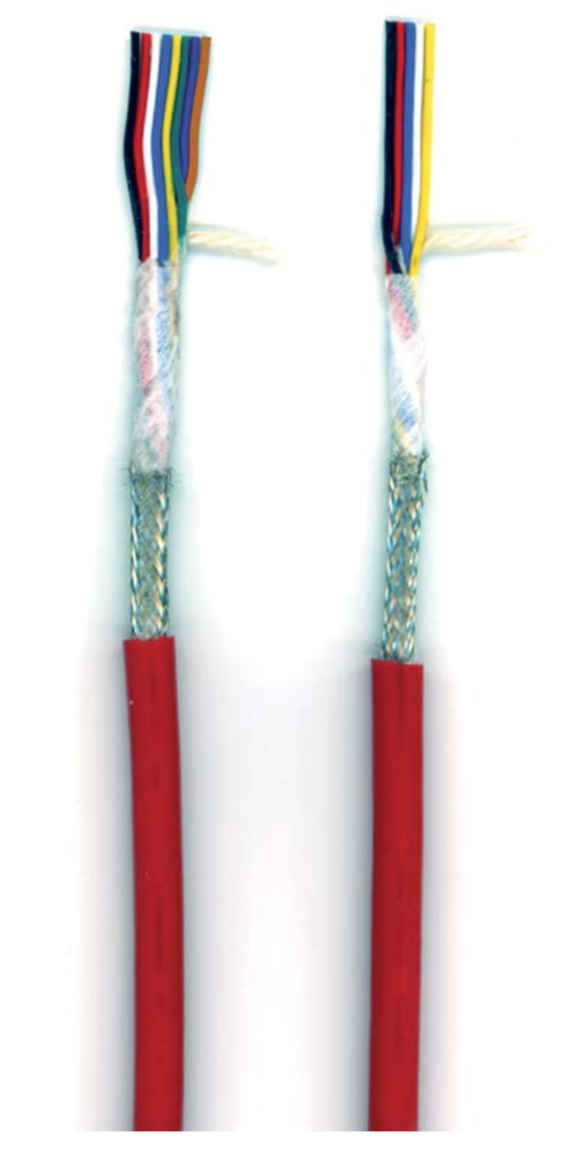

Encoder Cable

Encoder Cable

Conductors

16/0.12mm (0.18sq mm) tin copper wire.
The wire conforms to the requirements of AS1574 for type 110 copper.
D.C. Resistance of the conductor is 106 ohms/km @200 C, this Conductor fulfils the requirements of AS1125.

Insulation

V90-HT PVC designed to comply with AS/NZS 3808:2000.
The cores are insulated to a nominal diameter of 1.00 +/- 0.05mm.
Radial thickness of insulation is 0.20mm.
In line spark testing at 1.80Kv A.C. is used to assure insulation integrity.

Lay Construction
The above eight cores are laid up with a 1 x 3/200 denier cotton filler in the centre and a paper tape overall.

Screening

16 x 6 x 0.12mm tinned copper wire braid (coverage 75%).
A further paper tape is then lapped over the braid.

Cable Integrity

To ensure integrity between insulation and screen all cores are tested for short circuit (test voltage is set at 500V). Conductor continuity is also checked.

Sheath
Semi-compressed Polyurethane. Nominal diameter 5.80mm, maximum 6.00mm.

Electrical Characteristics

Max.1 Amp

Important: THIS CABLE IS NOT SUITABLE FOR CONNECTION TO THE MAINS.
