Midori CP-1Hx

Miniature Hall-IC Contactless Angle Position Sensor

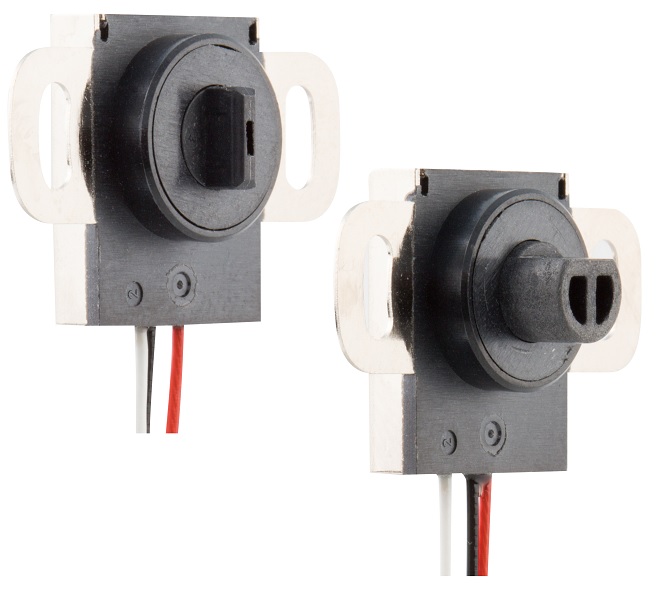

Midori CP-1HX Angle Position Sensor

The Midori CP-1Hx series angle position sensors are extremely compact. They are only 21mm in diameter and have a thickness of 4.4mm.

This makes them ideal for applications, where space is limited and reliability is an important factor.

Key Features:

  • Effective Electrical Travel: 90°, 180°, 360° (359.9°)
  • Single Output (3-wire), Dual Output (6-wire)
  • Output: Voltage Ratio, PWM
  • Shaft Shape: Double Side Flat Shaft, D-Cut, Touchless
  • IP67
