UniMeasure JX-EP

Linear Position Transducer, Digital Output

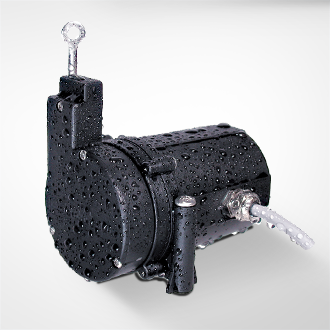

UniMeasure JX-EP

The UniMeasure JX-EP series draw transducer with digital output is ideal for use
in moderate duty applications, in wet or dry environments.

The chemical resistant thermoplastic case of the transducer with integral dust wiper is factory configurable to IP-52 for dust protection, or to IP-65 for applications where exposure to washdown, rain, oil and other liquids may occur. The wire rope exit direction may be specified at time of ordering, or maybe user adjusted at time of installation.

The standard electrical connection includes a sealed bulkhead fitting and multi-conductor electrical cable. An optional cable to cable connector with mating connector may be added to the electrical cable. Alternatively, the cable to cable connector may be ordered without the mating connector.

For convenience, optional connector locations on the transducer body are offered. The standard electrical output of the unit is a TTL level two channel square wave in quadrature. Optional outputs include line driver and push-pull circuits.
