UniMeasure JX-P420

Linear Position Transducer, 4-20mA Output
UniMeasure JX-P420

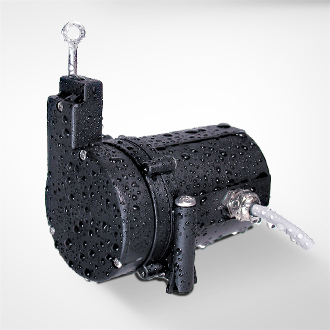

The UniMeasure JX-P420 series draw wire transducer is ideal for use in moderate duty applications, in wet or dry environments.

The chemical resistant thermoplastic case provides IP-65 ingress protection for applications where exposure to washdown, rain, oil and other liquids may occur. An integral dust wiper insures that the wire rope stays clear of debris as it is extracted and retracted.

The standard electrical connection includes a sealed bulkhead fitting and multi-conductor electrical cable. An optional connector and mating connector are also available.
For convenience, optional connector locations on the transducer body are offered. The wire rope exit direction may be specified at the time of ordering or may be user adjusted at time of installation.

Zero and span adjustment potentiometers are accessible. These allow for adjustment for a full 4 to 20 mA output at between 50% and 100% of maximum linear travel.

Stocklist
Part Number Description Related Product
CP-2UK-R

MIDORI CP-2UK-R234 ROTARY TRANSDUCERS

Enquire Now
CP-2UKN-A

MIDORI CP-2UKN-A ROTARY TRANSDUCERS

Enquire Now
DCW2000B

RDP DCW2000B TRANSDUCER

Enquire Now
HP-16

MIDORI HP-16 1K POTENTIOMETER

Enquire Now
HP-16-5K

MIDORI HP-16 5K POTENTIOMETER

Enquire Now
JX-P420-30-N11-10S-N11

UNIMEASURE JX-P420-30 LINEAR TRANSDUCER

Enquire Now
JX-P420-40-N11-10S-N11

UNIMEASURE JX-P420-40 LINEAR TRANSDUCER

Enquire Now
JX-P420-80-N11-10S-N11

UNIMEASURE JX-P420-80 LINEAR TRANSDUCER

Enquire Now
LP-100FJS

MIDORI LP-100 FJS LINEAR POTENTIONM

Enquire Now
LP-10FB

MIDORI LP-10FB LINEAR POTENTIOMETER

Enquire Now
LP-20FB-1K

MIDORI LP-20FB 1KOHM LINEAR POTENTIOMETE

Enquire Now
LP-50FB

MIDORI LP-50FB LINEAR POTENTIOMETER

Enquire Now
LP-50FJS

MIDORI LP-50FJS LINEAR POTENTIOMETE

Enquire Now
NG3I

SEIKA NG3I INCLINOMETER

Enquire Now
NG3U

SEIKA NG3U INCLINOMETER

Enquire Now
NG4I

SEIKA NG4I INCLINOMETER (500mm cable)

Enquire Now
PMP-10HTL

MIDORI PMP-10HTL

Enquire Now
PMP-10TL-A06

MIDORI PMP-10TL-A +/-10 DEG INCLINO

Enquire Now
PMP-30TL-A

MIDORI PMP-30TL-A +/-30 DEG INCLINOMETER

Enquire Now
PMP-30TZL-A

MIDORI PMP-30TZL-A INCLINOMETER

Enquire Now
PMP-45TL-A05

MIDORI PMP-45TL-A +/-45 DEG INCLINOMETER

Enquire Now
S7AC

RDP S7AC LVDT LINE AMPLIFIER

Enquire Now
S7M

RDP S7M LVDT LINE AMPLIFIER

Enquire Now
