Low Range Pressure Transducer 0-200mbar

TSA-300PT-000.2-MA5

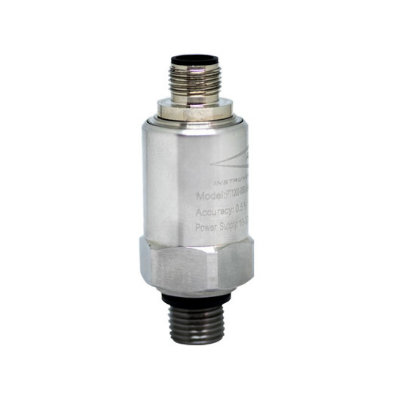

TSA-300PT Low Pressure Transducer

Measuring low pressures requires a more sophisticated sensor,which can be more expensive.

The TSA-300PT series pressure transmitters have been designed to be price competitive for volume users and are well stocked locally.

The compact stainless steel design, uses an M12 electrical connection, popular among automation engineers, and also offers a IP67 seal when used with the appropriate locking M12 plug (optional extra).

Standard accuracy is ±0.5% with an over pressure limit of one and half times the rated pressure range

1/4” BSP pressure connection is standard, with alternatives available on request.

Optional higher accuracy, outputs and electrical connections are also available.
