User Adjustable Electronic Pressure Switch 0~40bar

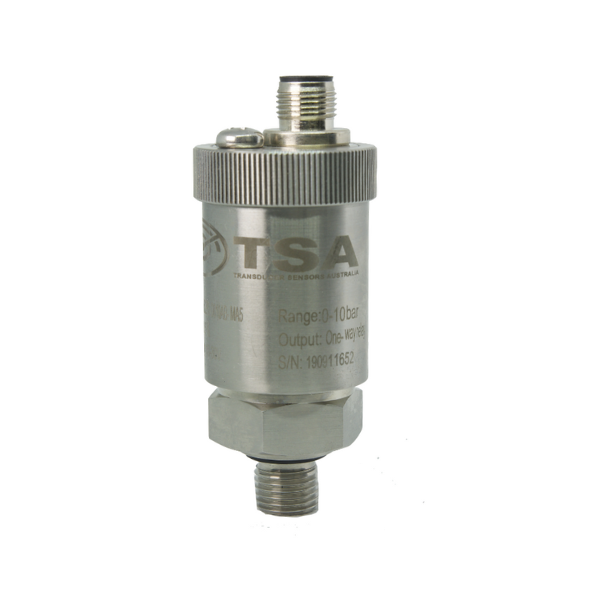

TSA-622PSW-0040AB-MAS Pressure Switch

TSA Adjustable pressure switch range is simple in design, has corrosion resistant 316 Stainless Steel IP65 body, and a ¼” BSP parallel process connection as our stock standard. The M12 electrical connection is a favourite with automation engineers.

Offering a NO/NC changeover relay, suitable for 1A at 24V. Powered with 10-30VDC

The factory default pressure setting is set at 50% of the max rated pressure and the user can adjust this by accessing the trim potentiometer found behind the protective cover screw.

  • Working temperature: -20°C to +60°C
  • Accuracy: ±0.5%
  • Overload Pressure: 1.5 x Rated Pressure
  • Protection: IP65

Pressure Measuring Range: 0~40bar (4000kpa) (580psi)

Optional extras include an M12 cable connector (8 pin female), with either 5 meters PVC or PUR cable.
