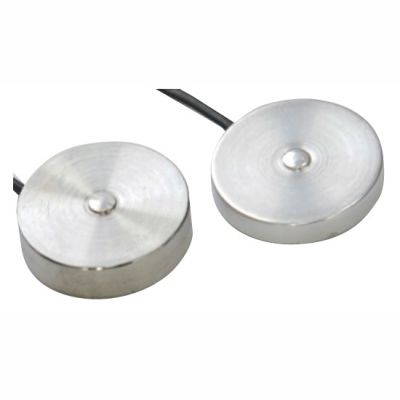

This miniature load cells is only 20mm in diameter and is available in 1, 2, 5, 10, 20, 30, 50 and 100Kgf models.
Models 10Kgf and below are constructed from anodised aluminium. Models 20Kgf and higher are constructed from stainless stel.
Repeatability is rated at 1%.
A 5V excitation voltage is recommended, although up to 10V can be used.
Rated temperature effect on zero value and output value is 0.5%.
