PT7000

Compact Compression Load Cell, Low Profile

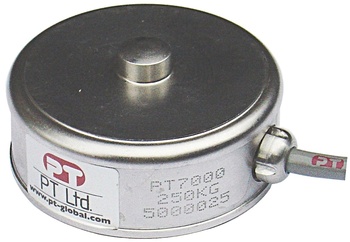

PT7000 Button Load Cell

The PT7000 is constructed from fully welded stainless steel and is sealed to IP68, making it suitable for non-austic wash down applications.

This is a button type load cell that is ideal for tank and hopper weighing applications.

Measuremeant capacities available: 100Kgf, 250Kgf, 500Kgf, 1000Kgf, 2500Kgf, 5000Kgf, 10,000Kgf, 25,000Kgf and 50,000Kgf

Hysteresis is less than 0.05% F.S.

Recommended excitation voltage is 5~15V, maximum permissible is 20V.
