Han Housing Bulkhead mounted Double Lever Size 10B

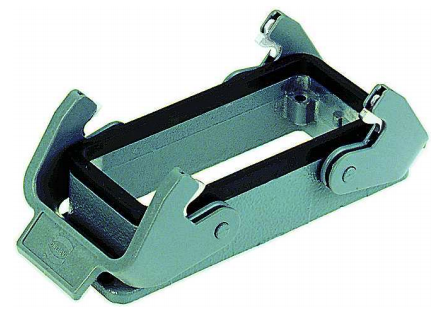

The Harting 09300100301 Han B Base Panel 2 Levers is a bulkhead-mounted housing, designed to mount directly to a panel or cabinet wall and form the fixed half of a heavy-duty industrial connector assembly. Size 10B, low construction profile, and double locking levers make it a practical, reliable choice for machine building, automation, energy distribution, and anywhere that connector security and space efficiency both matter.

Low Construction, High Reliability

The "low construction" designation means this housing sits closer to the panel surface than a standard-depth base, making it well suited to applications where depth behind the bulkhead is limited — control cabinets, equipment enclosures, and compact machine housings. Despite the reduced profile, it doesn't compromise on environmental protection: it's IP65 rated to IEC 60529, sealing out dust completely and resisting water jets from any direction. UL 50 / UL 50E Type ratings of 4, 4X, and 12 confirm equivalent North American recognition — protection against windblown dust, rain and hose-directed water (Type 4), corrosion resistance (Type 4X), and indoor protection against dust and dripping liquids (Type 12). Operating range is -40°C to +125°C.

Double Locking Levers and Han-Easy Lock® Compatibility

This base uses a double locking lever system, distributing clamping force evenly across both sides of the housing to hold the mated connector firmly under vibration, shock, and repeated connect/disconnect cycles. It is also compatible with HARTING's Han-Easy Lock® system, which allows the locking levers to be actuated simultaneously with one hand — reducing connection time and operator error in busy or awkward installation environments.

Aluminium Die-Cast Body with NBR Seal

The housing body is aluminium die-cast, finished in a powder coat in RAL 7037 dust grey — a durable, corrosion-resistant surface suited to the wear and handling of industrial use. The sealing element is NBR (nitrile rubber), which maintains its elasticity across the full operating temperature range and resists oils, fuels, and many common industrial fluids. The locking levers are polycarbonate and stainless steel, rated UL 94 V-0 for flame retardancy — self-extinguishing with no dripping.

Certified for Demanding Environments

The housing carries DNV GL approval, making it suitable for marine and offshore installations. It is fully certified to UL 1977 (ECBT2.E235076) and CSA-C22.2 No. 182.3 (ECBT8.E235076) for the North American market. It is RoHS and ELV compliant, and free of substances listed under REACH Annex XIV, Annex XVII, and the SVHC candidate list. Made in Germany.

Where It's Used

As the panel/bulkhead-mounted base, this housing is the foundation of a Han B size 10B connector assembly. It's used wherever a heavy-duty rectangular connector needs a fixed mounting point — on machinery, control panels, power distribution enclosures, robotics cells, and industrial vehicles. Pair it with a Han B size 10B insert and a compatible cable hood to complete the connector.
