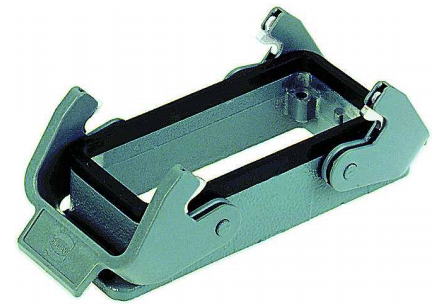

Han Housing Bulkhead mounted Double Lever Size 16B

The Harting 09300160301 Han 16B HBM Double Lever is a size 16B bulkhead-mounted base housing from HARTING's Han® B series, designed to mount to a panel or cabinet wall and form the fixed installation point for a Han B 16B heavy-duty connector assembly. HBM stands for Horizontal Bulkhead Mounting — the housing sits flush against the panel surface in a low construction profile, with double locking levers and Han-Easy Lock® compatibility for fast, reliable connector engagement. It is the 16B counterpart to the Han B Base Panel 2 Levers (09 30 010 0301), stepping up in size for installations requiring more contact positions or greater current and signal density in a single connector interface.

Low Construction, High Capacity

The 16B designation places this housing in a larger size bracket within the Han B family, suited to applications where a 10B housing does not provide enough contact capacity. The low construction profile keeps the housing close to the panel surface, which matters in compact control cabinets and equipment enclosures where depth behind the bulkhead is limited. Despite its larger footprint, the housing maintains the same IP65 environmental rating and -40°C to +125°C operating range as smaller Han B housings, with no performance compromise as the assembly scales up.

Double Locking Levers and Han-Easy Lock®

The double locking lever system distributes clamping force evenly across both sides of the housing, holding the mated connector firmly even under continuous vibration and repeated connect/disconnect cycles. Han-Easy Lock® compatibility allows simultaneous one-handed engagement of both levers, reducing connection time and the possibility of a partially latched connector going unnoticed — a useful feature in high-cycle or automated applications where connector integrity needs to be confirmed quickly.

Aluminium Die-Cast with NBR Seal

The housing body is aluminium die-cast, powder-coated in RAL 7037 dust grey — a finish that resists the corrosion and mechanical wear of active industrial use. The NBR sealing element maintains the IP65 rating across the full temperature range and holds up against exposure to oils and common industrial process fluids. Locking levers are polycarbonate and stainless steel, rated UL 94 V-0 for flame retardancy.

Certified for Industrial, Marine, and North American Applications

The housing carries DNV GL approval for marine and offshore use, and is fully certified to UL 1977 (ECBT2.E235076) and CSA-C22.2 No. 182.3 (ECBT8.E235076) for the North American market. It is RoHS and ELV compliant, with REACH Annex XIV, Annex XVII, and SVHC substances all confirmed absent. Made in Germany.

Where It's Used

The Han B 16B housing is used wherever a heavier-duty or higher-density connection is needed within the Han B rectangular connector system — larger machine tools, power distribution panels, robotic cells, energy infrastructure, and marine electrical systems. Pair it with a compatible 16B insert and cable hood to complete the connector assembly.
