Han Insert Male 6 pin plus Earth 35A Size 16B Screw Termination

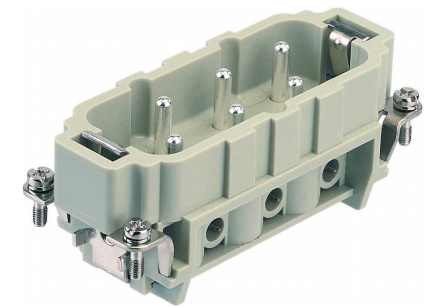

The Harting 09310062601 Han 6HsB-M-S is a 6-contact male screw-termination power insert from HARTING's Han® HsB series, designed to fit into size 16B Han B housings. This is a different category of product from the housings and protection covers in the Han B range — it is the active electrical component that goes inside the housing, providing the contact interface between the cable and the connector. With six power contacts plus a protective earth, rated at 35A and 690V conductor-to-conductor, it is built for demanding industrial power distribution, machine supply, and high-current control applications.

What the Han HsB Insert Does

A Han B connector assembly comprises three main components: a housing (base and hood), and the insert. The insert sits inside the housing and carries the electrical contacts. The Han HsB series uses screw termination — conductors are inserted and clamped by tightening a screw terminal — and is engineered for high-current power circuits where connection reliability and low contact resistance are critical. This insert (6HsB-M-S) provides the male pin side of the connection; the corresponding female insert provides the socket contacts on the mating half.

Electrical Ratings

The insert carries six contacts plus a dedicated PE (protective earth) contact — a total of seven termination points. Each contact is rated to 35A continuous current and accepts conductor cross-sections from 1.5 to 6 mm², covering the standard range for industrial power circuits at these current levels. Key electrical ratings are:

- Rated voltage (conductor-to-earth): 400 V
- Rated voltage (conductor-to-conductor): 690 V
- Rated impulse voltage: 6 kV
- Rated voltage acc. to UL/CSA: 600 V
- Insulation resistance: >10¹⁰ Ω
- Contact resistance: ≤1 mΩ
- Pollution degree: 3

The 6 kV impulse voltage rating confirms suitability for use in industrial environments with transient overvoltages characteristic of Pollution Degree 3 conditions — open industrial settings with conductive contamination. The inserts are designed per EN 60664-1 (insulation coordination for low-voltage systems) and IEC 61984 (connector safety requirements and tests).

Screw Termination with Wire Protection

Termination is by screw, tightened to 0.5 Nm — a straightforward, widely understood method that requires no special tooling beyond a screwdriver and is easily re-terminated in the field. Wire protection is included, helping to prevent conductor breakage from vibration or movement at the termination point. Mating cycles are rated at ≥500.

Contact and Insert Materials

The insert body is polycarbonate (PC) in RAL 7032 pebble grey, rated UL 94 V-0 for flame retardancy. Contacts are copper alloy with silver plating — silver provides low and stable contact resistance across the rated current range and resists the oxidation that can degrade contact performance over time.

Compliance

The insert is certified to UL 1977 (ECBT2.E235076), CSA-C22.2 No. 182.3 (ECBT8.E235076), UL 2237 (PVVA2.E318390), and CSA-C22.2 No. 182.3 (PVVA8.E318390), providing full North American market approval. RoHS compliance is achieved with one declared exemption: exemption 6(c), covering copper alloys containing up to 4% lead by weight — a standard and widely recognised exemption applied to machined copper alloy contacts. ELV compliance is similarly with exemption. REACH SVHC substance Lead is present (from the copper alloy contacts) and must be disclosed. REACH Annex XIV and Annex XVII substances are not contained. Country of origin is Romania.

Where It's Used

The Han 6HsB-M-S is used in any application requiring a 6-contact + PE heavy-duty power insert in a 16B Han B housing — motor supply connections, machine power distribution, industrial control panels, and equipment where robust, re-terminable high-current connections are needed. Pair with the corresponding female insert and a compatible 16B Han B base housing and cable hood to complete the connector assembly.
