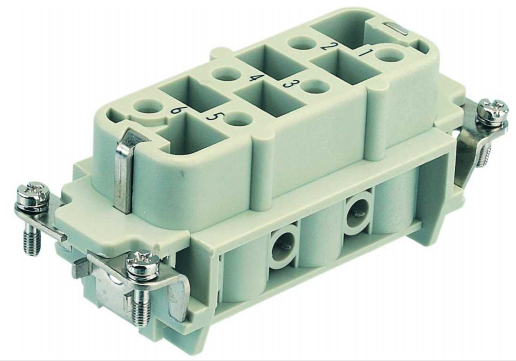

Han Insert Female 6 pin+E 35A Size 16B Screw Termination

The Harting 09310062701 Han 6HsB-F-S is the female (socket) counterpart to the Han 6HsB-M-S (09 31 006 2601), forming the other half of the 6-contact HsB screw-termination power insert pair for size 16B Han B housings. Where the -M-S carries male pin contacts, the -F-S carries female socket contacts — together they make up the complete mated insert set for a 6-contact + PE heavy-duty power connection at 35A and 690V. The electrical ratings, materials, and certifications are identical across both inserts; the difference is purely the contact gender and the housing side each insert is installed in.

Female Insert: Socket Contacts for the Cable Hood Side

In a Han B connector assembly, the female insert typically occupies the cable hood (the mobile, cable side), while the male insert sits in the panel-mounted base — though this convention can be reversed depending on the application's safety requirements. The female socket contacts receive the male pins when the connector is mated, with the socket geometry providing the spring contact force that ensures low, stable contact resistance across the rated ≥500 mating cycles. At 90.48g the female insert is marginally heavier than the male (85.11g), reflecting the slightly greater material content of socket contacts versus pins.

Electrical Ratings

Six contacts plus a dedicated PE (protective earth) contact. Each contact is rated at 35A continuous current, accepting conductor cross-sections from 1.5 to 6 mm². Full electrical specification:

- Rated voltage (conductor-to-earth): 400 V
- Rated voltage (conductor-to-conductor): 690 V
- Rated impulse voltage: 6 kV
- Rated voltage acc. to UL/CSA: 600 V
- Insulation resistance: >10¹⁰ Ω
- Contact resistance: ≤1 mΩ
- Pollution degree: 3
- Operating temperature: -40°C to +125°C

Designed per EN 60664-1 and IEC 61984.

Screw Termination with Wire Protection

Conductors are terminated by screw, tightened to 0.5 Nm. Wire protection is included to resist conductor fatigue from vibration at the termination point. No specialist tooling is required beyond a screwdriver, and field re-termination is straightforward.

Materials

Insert body is polycarbonate (PC) in RAL 7032 pebble grey, rated UL 94 V-0. Contacts are silver-plated copper alloy, providing low and stable contact resistance and resistance to oxidation across the service life of the insert.

Compliance and Certifications

Certified to UL 1977 (ECBT2.E235076), CSA-C22.2 No. 182.3 (ECBT8.E235076), UL 2237 (PVVA2.E318390), and CSA-C22.2 No. 182.3 (PVVA8.E318390). RoHS compliant with exemption 6(c) — copper alloy contacts containing up to 4% lead by weight, a standard declared exemption for machined copper contacts. ELV compliant with the same exemption. REACH SVHC substance Lead is present (from the copper alloy contacts). REACH Annex XIV and Annex XVII substances are not contained. Made in Romania.

Where It's Used

The Han 6HsB-F-S is used wherever the female socket insert is needed in a 6-contact HsB screw-termination power circuit — motor connections, machine power supply, industrial control panels, and other high-current applications in a 16B Han B housing. It mates directly with the Han 6HsB-M-S (09 31 006 2601).
