Han Crimp Contact 16A Male 1.5sq.mm AWG16

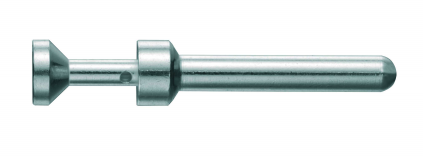

The Harting 09330006104 Han E M Crimp Contact Ag 1.5 mm²/16 AWG is a male pin crimp contact for the HARTING Han E® connector system, sized for 1.5 mm² (AWG 16) conductors. It is the smaller-conductor sibling of the Han E M Crimp Contact Ag 2.5 mm² (09 33 000 6102), and the two contacts are used together in mixed-wiring assemblies where different circuit conductors require different cross-sections within the same Han E insert body. Each contact is crimped individually onto its conductor and inserted into the Han E insert until retained, forming a complete connector assembly.

Rated at 16 A operating current with a contact resistance of ≤1 mΩ, the 1.5 mm² variant covers the full current capability of the Han E contact system while accommodating the lighter-gauge conductors commonly used for control circuits, sensor feeds, and auxiliary power lines.

Conductor Size and Contact Identification

The conductor cross-section determines which contact variant to use: the 1.5 mm² / AWG 16 contact (this product) accommodates finer conductors than the 2.5 mm² / AWG 14 version (09 33 000 6102). To prevent assembly errors when both contact sizes are used in the same insert, HARTING uses a groove identification system machined into the contact body: the 1.5 mm² contact carries **2 grooves**, while the 2.5 mm² contact carries 3 grooves. This allows visual and tactile identification of the correct contact during assembly, reducing the risk of inserting a contact into the wrong position. Confirm the groove count before inserting contacts into the insert body.

Crimp Termination

The conductor stripping length is 7.5 mm — the same as the 2.5 mm² variant. Crimping requires a calibrated crimp tool appropriate for the 1.5 mm² / AWG 16 range; using the correct die size ensures a gas-tight, vibration-resistant termination. A properly executed crimp produces a permanent cold-welded joint that does not require periodic re-torquing and maintains low contact resistance across the service life of the connector.

Electrical Ratings

- Operating current: ≤16 A
- Contact resistance: ≤1 mΩ
- Conductor cross-section: 1.5 mm² / AWG 16
- Stripping length: 7.5 mm
- Standards: EN 60664-1, IEC 61984

Materials

Contact body and pin are copper alloy with a silver-plated surface. Silver plating provides low, stable contact resistance and resists oxidation, making it well-suited to industrial environments where contacts may experience micro-motion or vibration over long service periods.

Compliance

RoHS compliant with exemption 6(c) — copper alloy contacts containing up to 4% lead by weight. ELV compliant with the same exemption. REACH SVHC substance Lead is present (inherent to the copper alloy); REACH Annex XIV and Annex XVII substances are not contained. China RoHS: 50. Manufactured in Germany.
