Han Crimp Contact 16A Male 1sq.mm AWG18

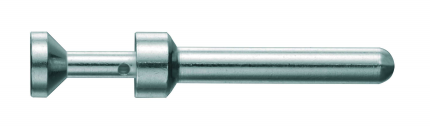

The Harting 09330006105 Han E M Crimp Contact Ag 1.0 mm²/18 AWG is a male pin crimp contact for the HARTING Han E® connector system, sized for 1.0 mm² (AWG 18) conductors — the finest conductor variant in the Han E male crimp contact range. Together with the 1.5 mm² (09 33 000 6104) and 2.5 mm² (09 33 000 6102) variants, it completes the three-size Han E male silver crimp contact family, allowing mixed-gauge wiring within a single Han E insert body to suit a wide range of circuit types in one connector assembly.

Each contact is crimped individually onto its conductor and inserted into the Han E insert body until retained by the locking mechanism. At 16 A operating current and ≤1 mΩ contact resistance, the 1.0 mm² variant carries the full current rating of the Han E contact system through a finer conductor — making it particularly appropriate for control circuits, sensor wiring, and instrumentation lines where conductor weight and bend radius matter alongside current capacity.

Groove Identification System

HARTING uses a groove-based contact identification system so that the correct contact size can be confirmed visually and by touch during assembly, even in poor lighting or when multiple contact sizes are present on the workbench. The groove count maps directly to conductor size tier:

- **1 groove** — 1.0 mm² / AWG 18 (this product)
- **2 grooves** — 1.5 mm² / AWG 16 (09 33 000 6104)
- **3 grooves** — 2.5 mm² / AWG 14 (09 33 000 6102)

Always verify the groove count before inserting a contact into the insert body. Inserting the wrong contact size can result in a mismatched crimp and reduced termination integrity.

Crimp Termination

Stripping length is 7.5 mm — consistent across all three Han E male crimp contact sizes. Use a calibrated crimp tool with the correct die for 1.0 mm² / AWG 18 conductors. A correctly executed crimp produces a gas-tight, cold-welded joint that is permanent, vibration-resistant, and requires no periodic maintenance.

Electrical Ratings

- Operating current: ≤16 A
- Contact resistance: ≤1 mΩ
- Conductor cross-section: 1.0 mm² / AWG 18
- Stripping length: 7.5 mm
- Standards: EN 60664-1, IEC 61984

Materials

Contact body and pin are copper alloy with a silver-plated surface. Silver plating provides low, stable contact resistance and resists surface oxidation, maintaining reliable electrical performance across the service life of the connector.

Compliance

RoHS compliant with exemption 6(c) — copper alloy contacts containing up to 4% lead by weight. ELV compliant with the same exemption. REACH SVHC substance Lead is present (inherent to the copper alloy); REACH Annex XIV and Annex XVII substances are not contained. China RoHS: 50. Manufactured in Germany.
