Han Crimp Contact 16A Female 2.5sq.mm AWG14

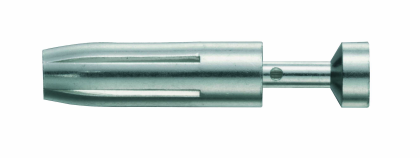

The Harting 09330006202 Han E F Crimp Contact Ag 2.5 mm²/14 AWG is the female (socket) crimp contact for the HARTING Han E® connector system, sized for 2.5 mm² (AWG 14) conductors. It is the direct mating counterpart to the Han E M Crimp Contact Ag 2.5 mm² (09 33 000 6102) — together, the male pin and female socket contacts form the complete contact pair for a 2.5 mm² Han E crimp circuit. Where the male contact (pin) is typically housed in the fixed panel-mounted insert, the female contact (socket) occupies the cable-side insert, receiving the pin on mating and providing the spring contact force that maintains low, stable contact resistance throughout the service life of the connector.

Like all Han E crimp contacts, the female contact is crimped individually onto its conductor and then inserted into the Han E insert body until retained, allowing each circuit position to be wired independently and contacts to be replaced in the field without disturbing the rest of the assembly.

Female Socket Contact: Mating with the Han E M 2.5 mm²

In a Han E assembly, male and female contacts must match in both conductor size and contact gender. The Han E F Crimp Contact Ag 2.5 mm² mates exclusively with the corresponding Han E M Crimp Contact Ag 2.5 mm² (09 33 000 6102). The socket geometry of the female contact captures the male pin on mating and applies a spring clamping force that ensures reliable electrical contact across the rated mating cycles. The female contact is slightly heavier than its male counterpart — 1.5 g vs 1.3 g — reflecting the additional material in the socket barrel relative to the male pin.

Groove Identification

Contact identification uses the same groove system as the male contacts: groove count maps to conductor cross-section, regardless of gender.

- **3 grooves** — 2.5 mm² / AWG 14 (this product, and its male counterpart 09 33 000 6102)
- **2 grooves** — 1.5 mm² / AWG 16 (09 33 000 6204 female / 09 33 000 6104 male)
- **1 groove** — 1.0 mm² / AWG 18 (09 33 000 6205 female / 09 33 000 6105 male)

The groove count is consistent across male and female contacts of the same conductor size, so a 3-groove female always mates with a 3-groove male.

Crimp Termination

Conductor stripping length is 7.5 mm. Use a calibrated crimp tool with the appropriate die for 2.5 mm² / AWG 14 conductors. A correctly executed crimp produces a permanent, gas-tight, vibration-resistant joint that requires no periodic maintenance or re-torquing.

Electrical Ratings

- Operating current: ≤16 A
- Contact resistance: ≤1 mΩ
- Conductor cross-section: 2.5 mm² / AWG 14
- Stripping length: 7.5 mm
- Standards: EN 60664-1, IEC 61984

Materials

Contact body and socket are copper alloy with a silver-plated surface. Silver plating maintains low contact resistance and resists oxidation across the service life of the connector, including in industrial environments subject to vibration and micro-motion.

Compliance

RoHS compliant with exemption 6(c) — copper alloy contacts containing up to 4% lead by weight. ELV compliant with the same exemption. REACH SVHC substance Lead is present (inherent to the copper alloy); REACH Annex XIV and Annex XVII substances are not contained. China RoHS: 50. Manufactured in Germany.
