Han Crimp Contact 16A Female 1.5sq.mm AWG16

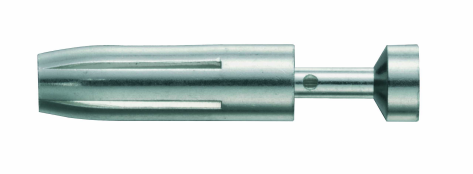

The Harting 09330006204 Han E F Crimp Contact Ag 1.5 mm²/16 AWG is the female (socket) crimp contact for the HARTING Han E® connector system, sized for 1.5 mm² (AWG 16) conductors. It is the direct mating counterpart to the Han E M Crimp Contact Ag 1.5 mm² (09 33 000 6104) — together they form the complete contact pair for a 1.5 mm² Han E crimp circuit. The female socket receives the male pin on mating, applying spring contact force that ensures low, stable contact resistance throughout the connector's service life.

Like all Han E crimp contacts, each female contact is crimped individually onto its conductor and inserted into the Han E insert body until retained, enabling independent per-circuit wiring and field-replaceable contacts without disturbing the rest of the assembly.

Female Socket for 1.5 mm² Circuits

The 1.5 mm² conductor size sits between the finest (1.0 mm² / AWG 18) and largest (2.5 mm² / AWG 14) contacts in the Han E silver crimp range, making it a common choice for control and auxiliary power circuits where a balance of flexibility and current capacity is required. The female contact at this size weighs 1.52 g — the same as the 1.0 mm² female (09 33 000 6205) and slightly heavier than the 2.5 mm² male (1.3 g), consistent with the socket barrel geometry adding material relative to a pin contact.

Groove Identification

The groove count identifies conductor size and is consistent across male and female contacts:

- **3 grooves** — 2.5 mm² / AWG 14 (09 33 000 6202 female / 09 33 000 6102 male)
- **2 grooves** — 1.5 mm² / AWG 16 (this product / 09 33 000 6104 male)
- **1 groove** — 1.0 mm² / AWG 18 (09 33 000 6205 female / 09 33 000 6105 male)

The 2-groove female always mates with the 2-groove male. Verify groove count before inserting any contact into the insert body to avoid mismatched terminations.

Crimp Termination

Stripping length is 7.5 mm. Use a calibrated crimp tool with the correct die for 1.5 mm² / AWG 16 conductors. A correctly executed crimp produces a gas-tight, permanent, vibration-resistant joint requiring no periodic re-torquing.

Electrical Ratings

- Operating current: ≤16 A
- Contact resistance: ≤1 mΩ
- Conductor cross-section: 1.5 mm² / AWG 16
- Stripping length: 7.5 mm
- Standards: EN 60664-1, IEC 61984

Materials

Contact body and socket are copper alloy with a silver-plated surface, providing low and stable contact resistance and resistance to oxidation across the service life of the connector.

Compliance

RoHS compliant with exemption 6(c) — copper alloy contacts containing up to 4% lead by weight. ELV compliant with the same exemption. REACH SVHC substance Lead is present (inherent to the copper alloy); REACH Annex XIV and Annex XVII substances are not contained. China RoHS: 50. Manufactured in Germany.
