Han Insert Female 6 pin+E 16A Size 6B Screw Termination

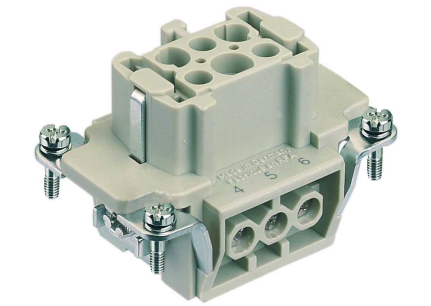

The Harting 09330062701 Han E 06 Pos. F Insert Screw is the female (socket) screw-termination insert for the HARTING Han E® connector system, sized for Han B size 6B housings. It is the direct mating counterpart to the Han E 06 Pos. M Insert Screw (09 33 006 2601) — together they form the complete male/female insert pair for a 6-contact + PE Han E screw-termination assembly. Where the male insert carries pin contacts and is typically mounted in the fixed panel-side base, the female insert carries socket contacts and occupies the cable-side hood, receiving the male pins during connector engagement.

All electrical ratings, materials, approvals, and compliance data are identical to the male insert. The female insert is marginally heavier — 51 g vs 47.4 g — reflecting the additional material in the socket contact geometry compared to pin contacts.

Female Socket Insert for Size 6B Han E Assemblies

Six female socket contacts plus a PE contact, all screw-terminated directly in the polycarbonate insert body. Conductors are inserted and secured by screw clamp at 0.5 Nm — no separate crimp contacts, no crimp tooling required. Wire protection is included to guard conductor strands against vibration fatigue at the termination point. The female insert typically occupies the cable-side hood of the connector assembly, though this convention can be reversed to suit application safety requirements.

Electrical Ratings

- Rated current: 16 A
- Rated voltage: 500 V
- Rated impulse voltage: 6 kV
- Rated voltage (UL/CSA): 600 V
- Insulation resistance: >10¹⁰ Ω
- Contact resistance: ≤1 mΩ
- Pollution degree: 3
- Operating temperature: -40°C to +125°C
- Conductor cross-section: 0.75–2.5 mm² / AWG 18–AWG 14
- Stripping length: 7.5 mm
- Tightening torque: 0.5 Nm
- Mating cycles: ≥500
- Standards: EN 60664-1, IEC 61984

Materials

Insert body: polycarbonate (PC), RAL 7032 pebble grey, UL 94 V-0. Contacts: copper alloy, silver-plated surface.

Approvals and Certifications

DNV GL approved for marine and offshore use. UL and CSA certified: UL 1977 (ECBT2.E235076), UL 2237 (PVVA2.E318390), CSA-C22.2 No. 182.3 (PVVA8.E318390).

Compliance

RoHS compliant with exemption 6(c) — copper alloy contacts containing up to 4% lead by weight. ELV compliant with the same exemption. REACH SVHC substance Lead is present (from copper alloy contacts); REACH Annex XIV and Annex XVII substances are not contained. China RoHS: 50. Manufactured in Germany.
