Han E 24 Pin+E Female Insert Screw 16A Size 24B

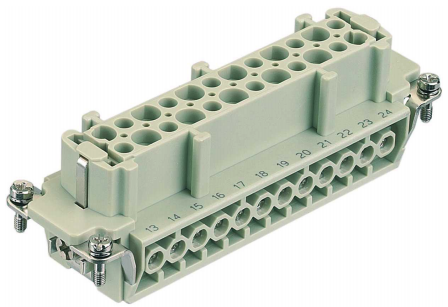

The Harting 09330242701 Han E 24 Pos. F Insert Screw is the female (socket) screw-termination insert for the HARTING Han E® connector system in size 24B — the female counterpart to the Han E 24 Pos. M Insert Screw (09 33 024 2601), and the largest-capacity female insert in the Han E screw-termination range. It provides 24 female socket contacts plus a dedicated PE contact in a single size 24B insert body, all terminated by screw clamp directly in the polycarbonate body without separate crimp contacts or tooling.

All electrical ratings, materials, approvals, and compliance data are identical to the male insert. The female insert weighs 123.85 g — heavier than the male at 115 g, consistent with the additional material in socket contacts relative to pin contacts across the range.

Female Socket Insert for Size 24B Han E Assemblies

Twenty-four female socket contacts plus 1 PE contact. Wire protection is included at each position. Conductors are stripped to 7.5 mm and secured at 0.5 Nm. The female insert occupies the cable-side hood in a standard Han B assembly, receiving the 24 male pins of the counterpart insert on mating.

For lower circuit counts in the same screw-termination system, refer to the 16-position (09 33 016 2701), 10-position (09 33 010 2701), or 6-position (09 33 006 2701) female inserts.

Electrical Ratings

- Rated current: 16 A
- Rated voltage: 500 V
- Rated impulse voltage: 6 kV
- Rated voltage (UL/CSA): 600 V
- Insulation resistance: >10¹⁰ Ω
- Contact resistance: ≤1 mΩ
- Pollution degree: 3
- Operating temperature: -40°C to +125°C
- Conductor cross-section: 0.75–2.5 mm² / AWG 18–AWG 14
- Stripping length: 7.5 mm
- Tightening torque: 0.5 Nm
- Mating cycles: ≥500
- Standards: EN 60664-1, IEC 61984

Materials

Insert body: polycarbonate (PC), RAL 7032 pebble grey, UL 94 V-0. Contacts: copper alloy, silver-plated surface.

Approvals and Certifications

DNV GL approved for marine and offshore use. UL and CSA certified: UL 1977 (ECBT2.E235076), UL 2237 (PVVA2.E318390), CSA-C22.2 No. 182.3 (PVVA8.E318390).

Compliance

RoHS compliant with exemption 6(c) — copper alloy contacts containing up to 4% lead by weight. ELV compliant with the same exemption. REACH SVHC substance Lead is present (from copper alloy contacts); REACH Annex XIV and Annex XVII substances are not contained. China RoHS: 50. Manufactured in Germany.
