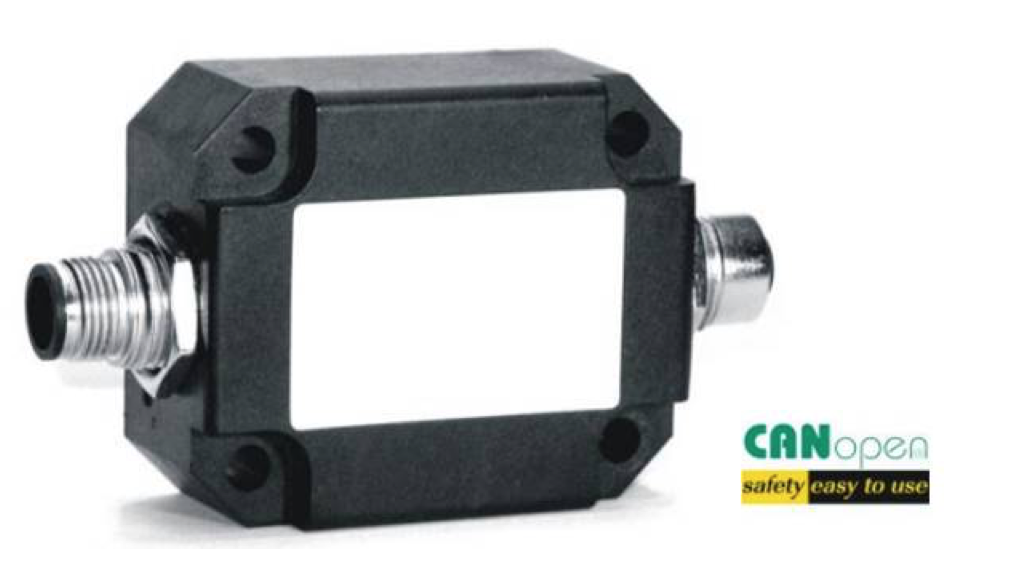

DIS QG65N-KDXYh-090-CANS-C(F)M-UL-2d

CANOpen Safety Inclinometer, SIL 2, Plastic Case
DIS QG76N-SIXv-360-CANS-CFM-UL-2d CANOpen SIL 2 Safety Inclinometer
Enquire Now
PDF icon Download Specifications (206 KB)
  • SIL2/Pld Certified
  • 2 axis, ±90deg, plastic body
  • CANOpen Safety
  • SIL2/Pld Certified
  • 2 x M12 8 pin connectors (Male & Female)
  • Power supply 10 ... 30 VDC
  • IP67

This QG series inclinometer measures angles across dual axes.
These inclinometers are based on robust MEMS technology, in which capacitance differences can be converted into an analogue voltage within a micro-mechanical sensor chip.

Also available as single axis; ±30deg and ±360deg
