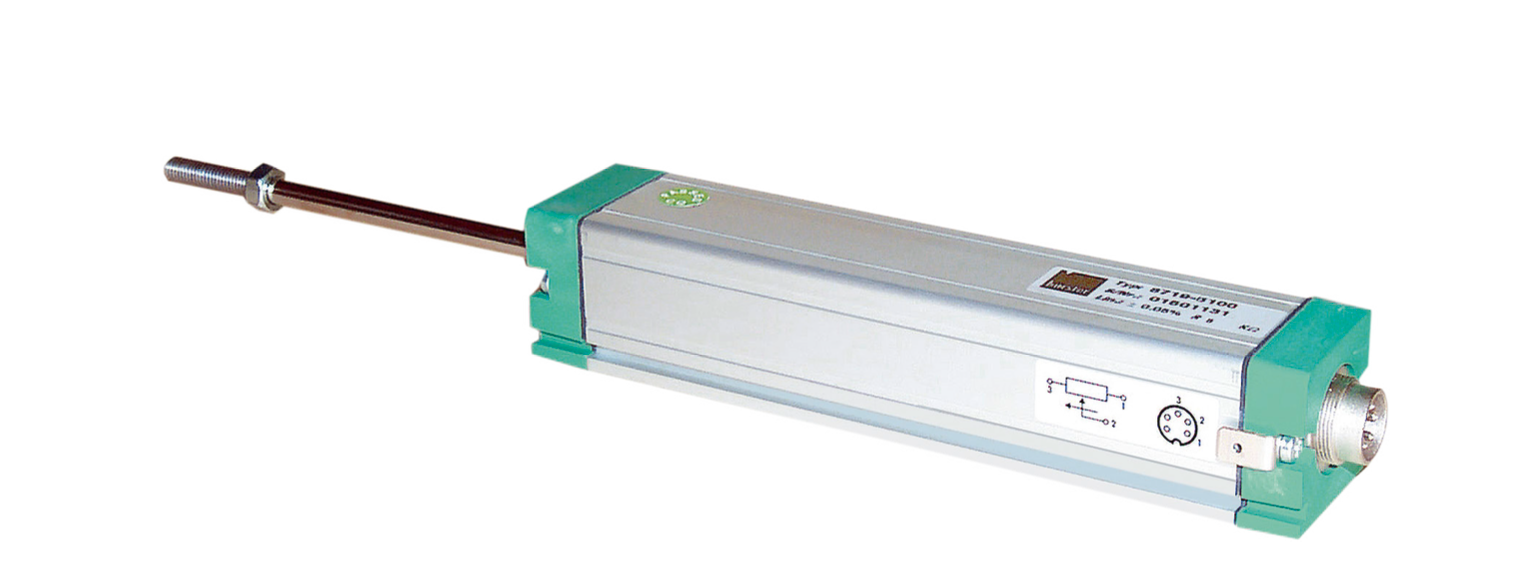

Rugged Linear Potentiometer; 50 to 900mm High resolution, high speed, IP60, IP65 or IP67
- Measuring ranges: between 0 ... 50 mm and 0 ... 900 mm
- Non-linearity ± 0.05 % F.S.
- Resolution: 0.01 mm
- Durability: Up to 100 x 106 movements
- Adjustment speed up to 10 m/s
- Plug or cable connection
- Optional protection classes IP65 and IP67 (IP60 as Standard)
- Montoring deformations & bending
- Pneumatic cylinders
- Press-insertions (longitudinal press-fits)
- Feed strokes
- Machine hubs
- Punch, knee lever or extruder distances
- Hydraulic cylinders
