High Capacity Shackle and Load Cell Assembly

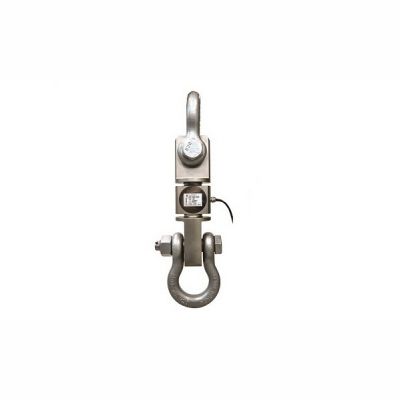

CHTC Shackle and Load Cell Assembly

The CHTC shackle and load cell assembly is a convenient solution for the measurement of industrial tensile force, where pulleys are being used to lift a load.

There are 4 measurement capacity options: 10tf, 20tf, 30tf and 50tf

Repeatability is rated at 0.2%

Recommended excitation voltage is 10V, maximum permissible is 15V
